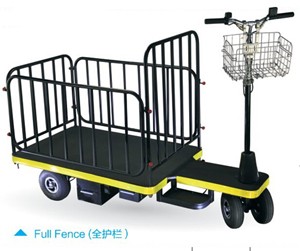

HG-DH-S500 (Standing Driving Electric Platform Trucks) " √" this symbol represents the default option |
||
Model | HG-DH-S500(Light Duty) | HG-DH-S500 (Heavy Duty) |
Products Fence | " √" No Fence Half Fence Full Fence Customize Fence | |
Products Size | L195*W80*H142(CM) | L210*W86*H142(CM) |
Table Size | L125*W80(CM) (Customize Size Available) | L138*W86(CM) (Customize Size Available) |
Max Capacity | 350 KGS | 500KGS |
Motor Power | 800W | |
Speed Adjust Range | 1.5 KMH ~ 9.5 KMH | 1.5 KMH ~ 8 KMH |
Brake | Magnetic Eddy Brakes | |
Controller | Curtis 24V 110An | |
Electronic Throttle | Chinese Throttle with Normal Power Display | |
Battery Type | Maintenance-Free Lead-Acid Batteries (Cycle 500 Times Within 1 Year500) | |
Battery Capacity | √"24V 38An or 24V 45An or 24V 50An | |
Endurance(25ºC Flat Road) | 24V 38An 350KGS 3.5 Hours | |
Charger Manufacturer | Taiwan Manufacturer or "√"Chinese Manufacturer | |
Charger Current | "√"24V 5An or 24V 8An | |
Charge Time(25ºC) | 24V 5An 10 Hours | |
Charger Plug Type | European American South Africa Australia Other ________ | |
Tyre Size | 10 Inch | |
Tyre Type | Solid Tyre "√"ChengShin Pneumatic Tyre | |
Caster Size | 6 Inch | |
Reflective Edge Sticker | "√"Fluorescent Yellow Green Yellow Silver Red Royal Blue | |
Cart Color | "√"Black Or White | |
Packing | One truck with one carton and one pallet (MDF) |
