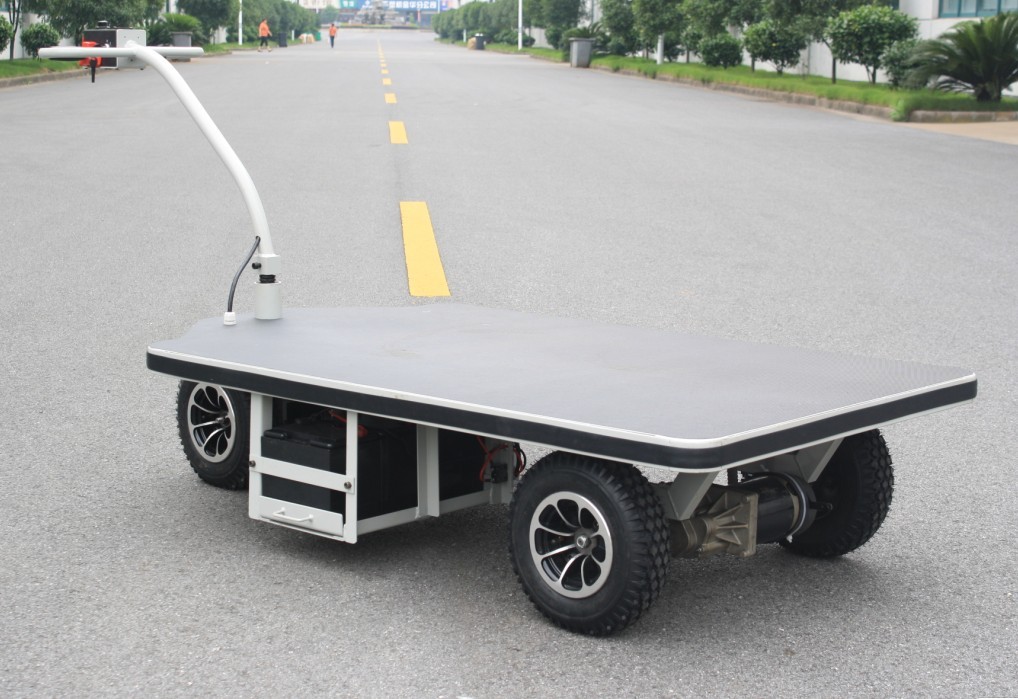

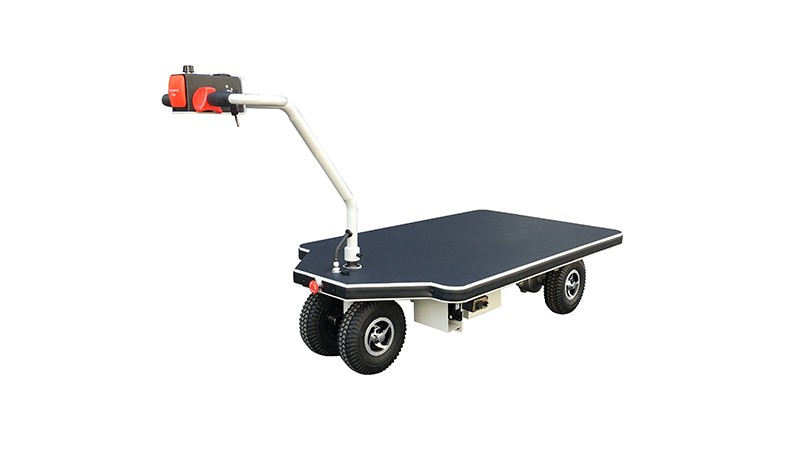

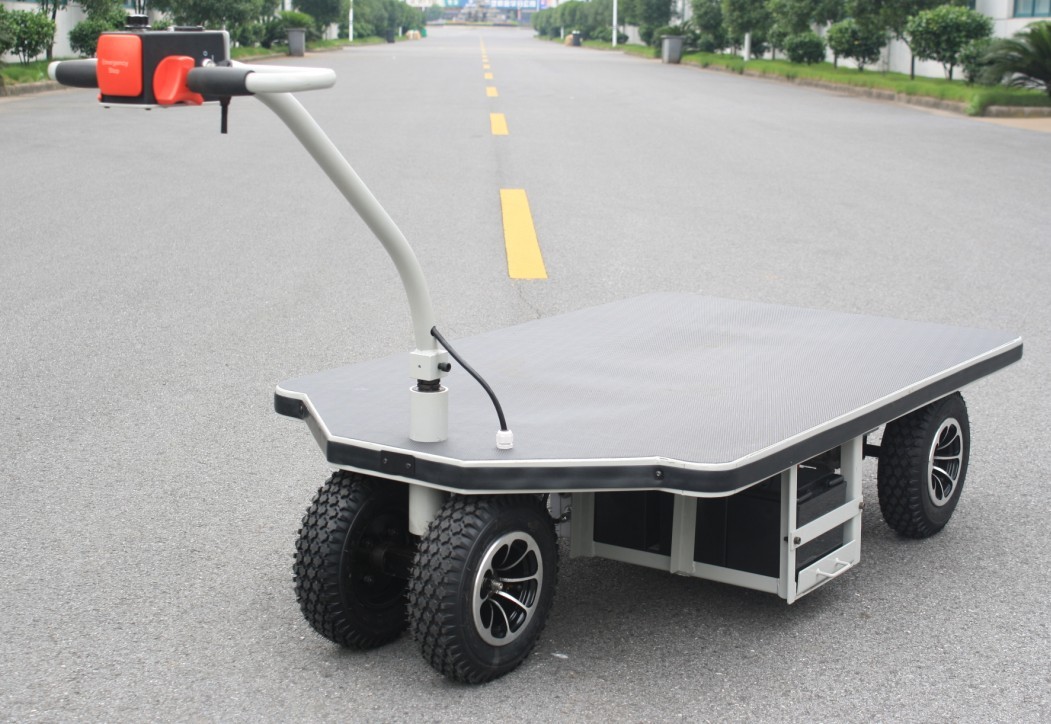

Powered Material Handling Cart
Technical Specifications:
1)Product size: 1935x800x1000mm
2)Platform size:1400x800mm
3)Max.load capacity: 500kg
4)Motor: 36V/800W
5)Battery: 12V/70AH x 3
6)Charge time: 10-12hours
7)Continuous working time: 6hours
8)Max climbing capability: 12o
9)Cart's finish is Grey Powder coated
10)Curtis Controller 110A, Curtis throttle
11)12" Rubber pneumatic drive wheel and truning wheel
12)Strong fixture handle with switch box integration
13)Adjustable moving speed: 3-6km/h
14)Packing size:150x85x75cm
15)G.W/N.W:130/120kg
Supply Ability: 400 sets per month
MOQ:5Units
Payment terms: T/T,30% in advanced,balance upon copy of BL
Lead time: 30-35days after desposit
The Motor cart is used in wide range of factories, shops, warehouses and hospitals.
