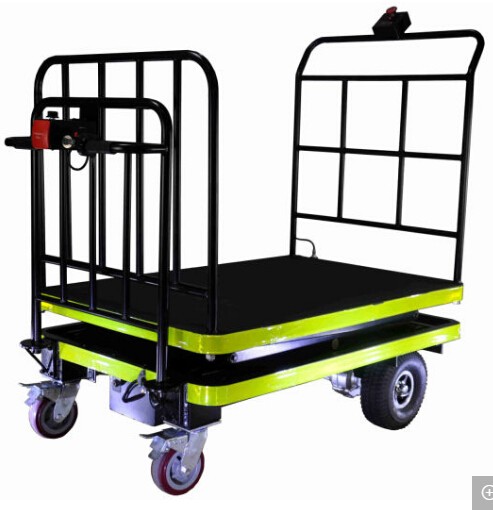

Scissor lift table (Manned Standing Electric Lifting Platform Trucks) "√" this symbol represents the default option |
|
| Model | HG-LF2-C4 |
| Products Fence | "√"Front and Back Hand Fence |
| Products Size | L165*W80*H102(CM) |
| Table Size | L125*W80(CM) |
| Available Table Size | L115*W80(CM) |
| Table Height | Lowest Height: 45CM Max Height: 160 CM |
| Max Capacity | 500 KGS |
| Speed | 1~6 KM/H |
| Motor | 500W |
| Lifting Motor | 800W |
| Brake | Magnetic Eddy Brakes |
| Controller | Curtis 24V 90An |
| Electronic Throttle | "√"Curtis Throttle DBI Power Display or Chinese Throttle with Normal Power Display |
| Battery Type | Maintenance-Free Lead-Acid Batteries (Cycle Charge 500 Times Within 1 Year) |
| Battery Capacity | "√"24V 38An or 24V 45An |
| Endurance(25ºC Flat Road) | 38An 450KGS 3:30 Hours |
| Battery Case Size | 23L*23W*19H(CM) |
| Charger Manufacturer | Taiwan Manufacturer or "√"Chinese Manufacturer |
| Charger Current | "√"5An or 6An |
| Charge Time(25ºC) | Charge Current 5An: 10 Hours About |
| Charger Plug Type | European American South Africa Australia Korea Japan Other ________ |
| Tyre Type | "√"Solid Tyre |
| Tyre Size | 10 Inch |
| Caster Size | 6 Inch |
| Caster Material | PA(Strong and Voice Loud ) "√"PU(Middle) PTE(Soft and quiet) |
| Caster Brake | "√"Full Brake |
| Color | "√"Black Or White |
| Fluorescent Strip Color | Red "√"Yellow Silver Blue Orange Green |
| Packing | One truck with one carton and one pallet (MDF) |
